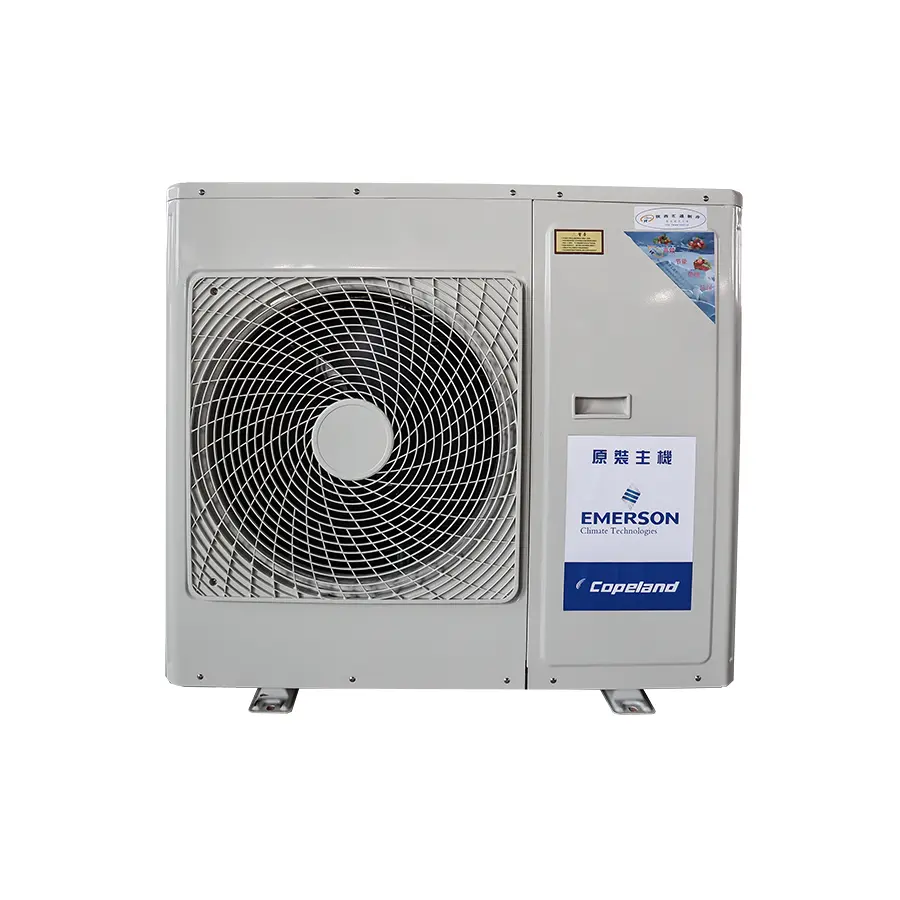

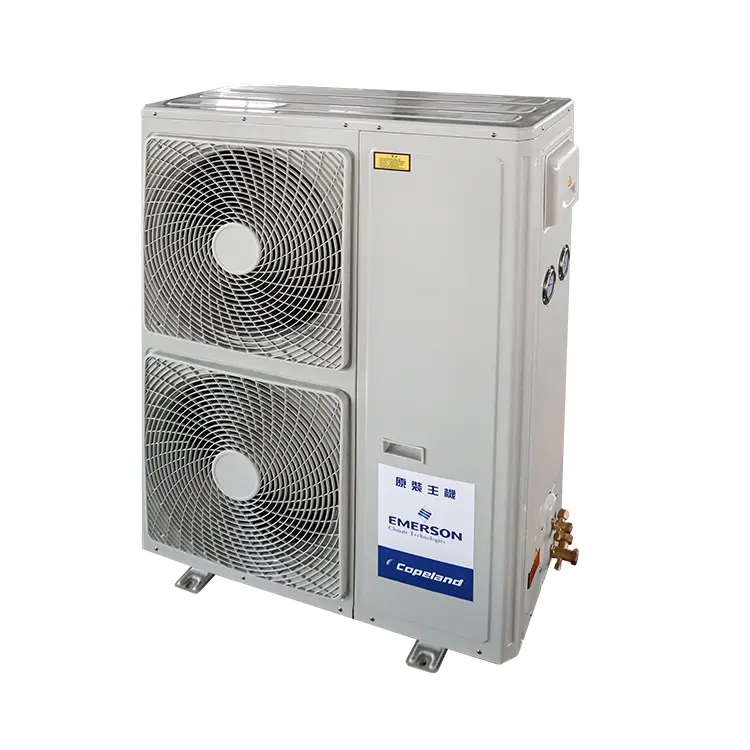

OEM Condensing Unit with Copeland Compressor Unit Air Cooled Factory, Exporter

A condensing unit for cold storage is the most important component in refrigeration systems, designed to maintain optimal temperatures for perishable goods. The condensing units are responsible for the function of a heat exchange to cool down and condense the incoming refrigerant vapor into liquid and a fan for blowing outside air through the heat exchanger to cool down the inside refrigerant.

Send Inquiry

Product Description

Products Description

Our HT-PG series Copeland Scroll Condensing unit is the optimized combination of high quality, efficiency, and easy installation. This kind of condensing unit is a perfect choice for particularly small size cold storage. It is reliable for various storage requirements, including fresh/frozen food, pharmaceuticals, chemicals, logistics, etc. The condensing unit contributes to maintaining the freshness and good quality of goods while lowering operational costs.

Product Details

Our HT-PG series Copeland Scroll Condensing unit matches requirements from high, mid, and low temperature, carrying the Copeland Hermetic Scroll series compressor from 2HP to 6HP. As an authorized Copeland OEM factory, the quality is reliable.

Key Features

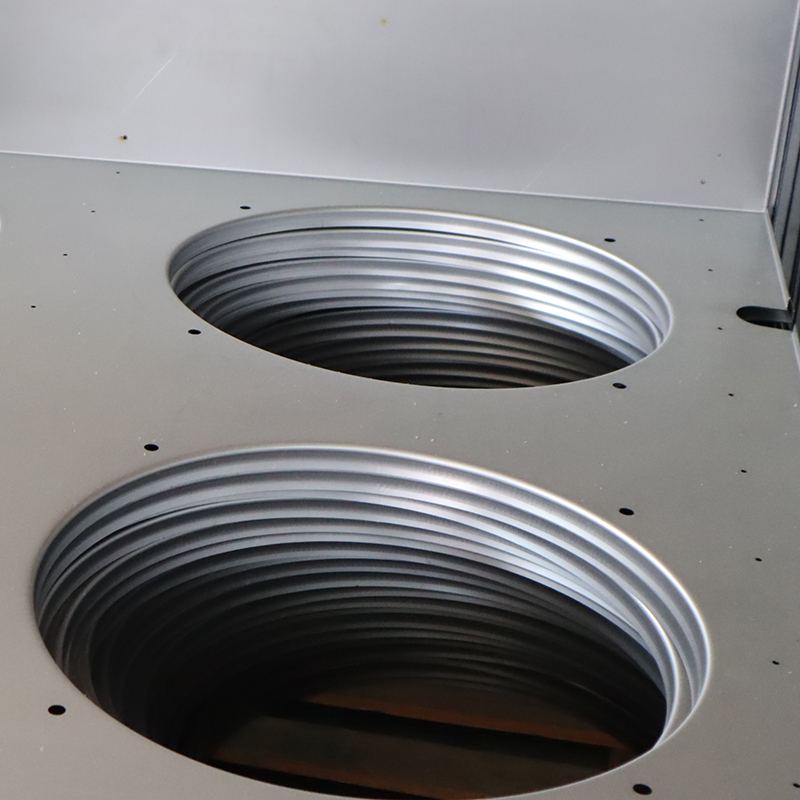

Cabinet Construction: Steel Plate Cabinet with plastic spray, corrosion proof. Colors can be customized.

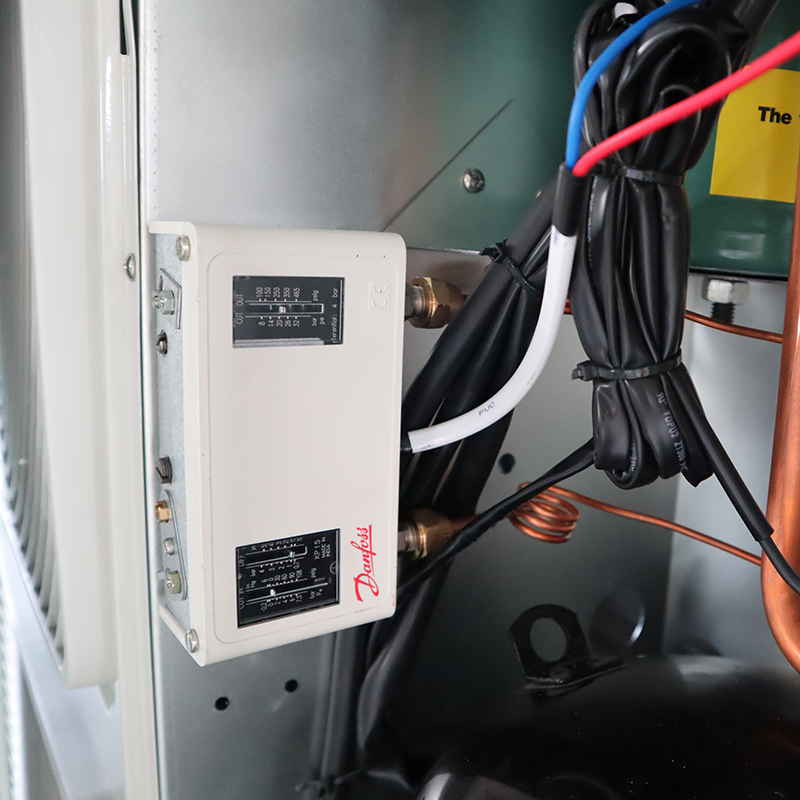

Premium Parts: High-quality refrigeration parts with Danfoss parts available.

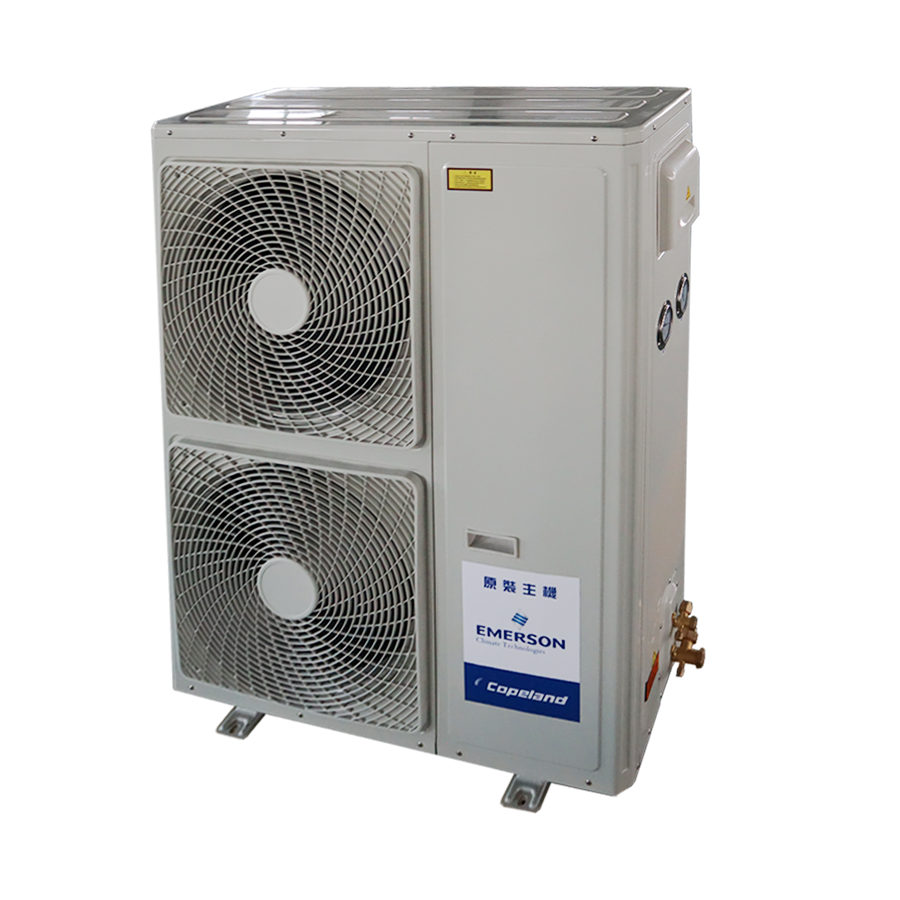

Protective Design: Open One Unit design, waterproof, dustproof, and beautiful appearance.

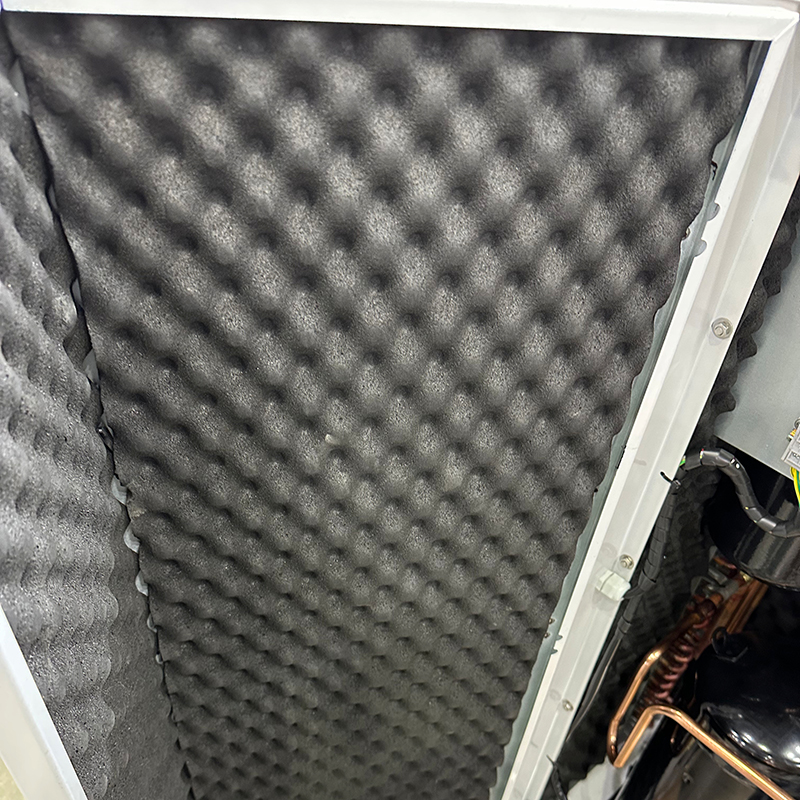

Silent Operation: Effective insulation and sound absorption for noise-free performance.

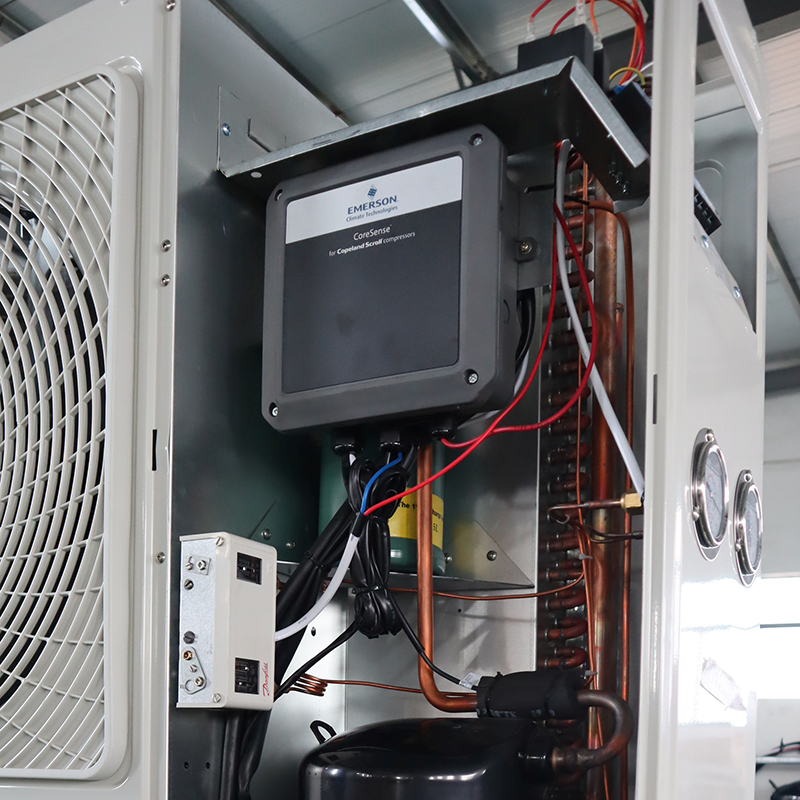

Diagnostics: Advanced CoreSense Diagnostics (Standard for Low Temperature Models).

Multi Protections: phase, overcurrent, discharge temp

Multi refrigerant: R404A, R134A, R507, R22 etc

System alarm with audible alerts for faults

Fan speed regulation based on condensing temp

Programmable electric defrost control

Slim-linear profile for easy mounting

Other Compressor brands available:

Standard Components

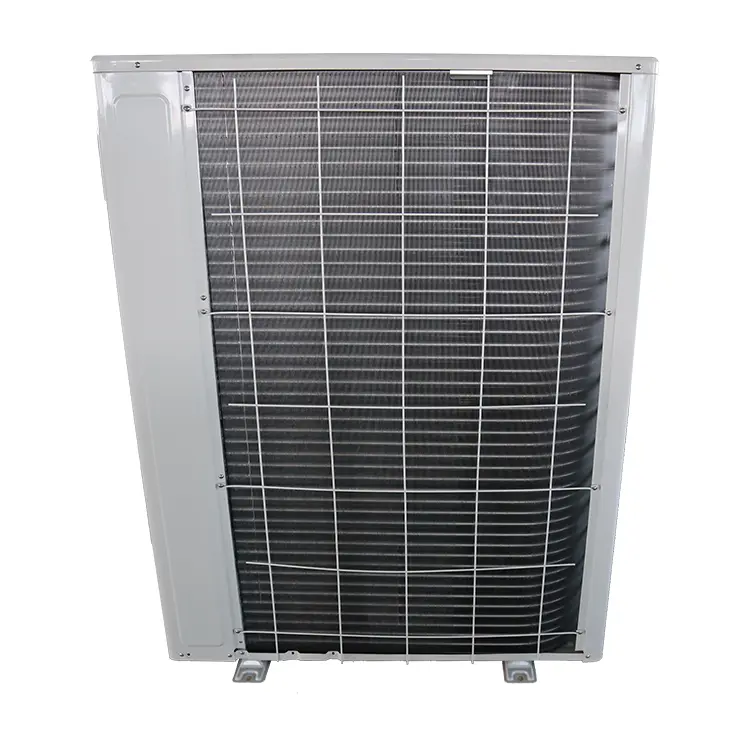

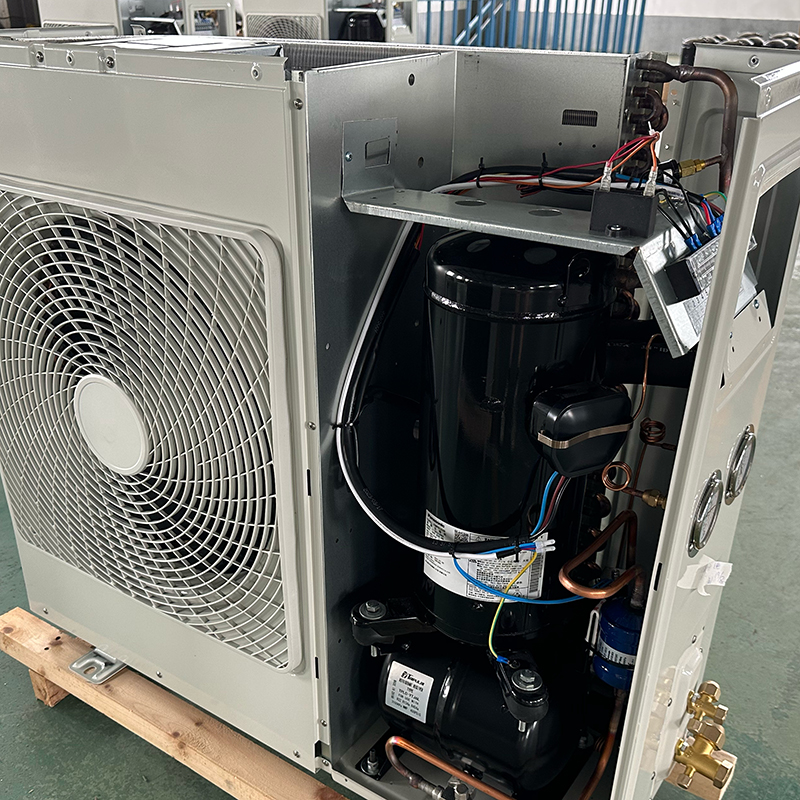

Compressor & Condenser

Light Foil / Hydrophilic available

Pressure Controller

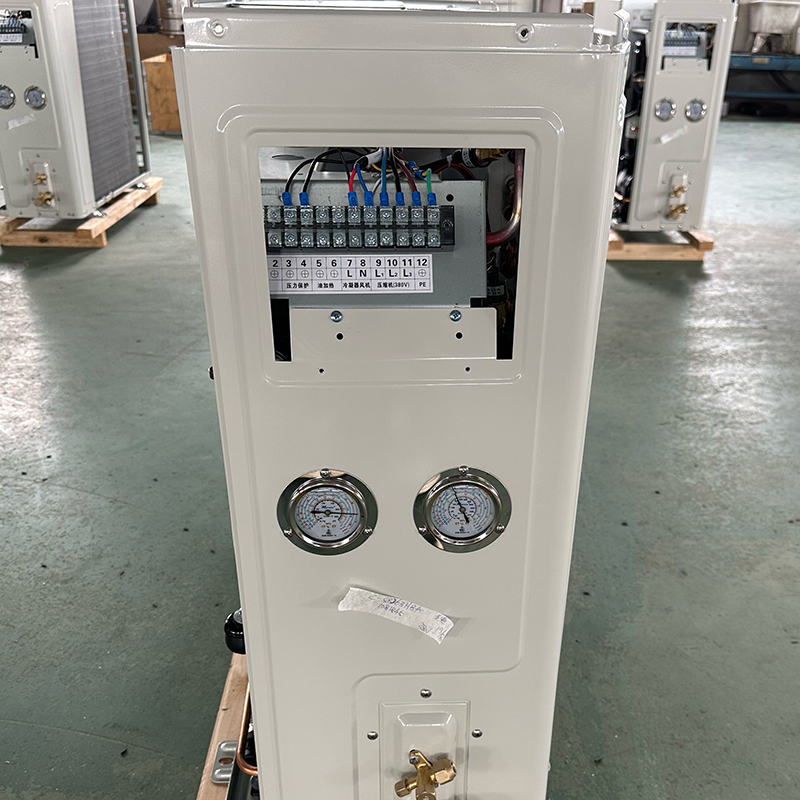

H/L P gauge

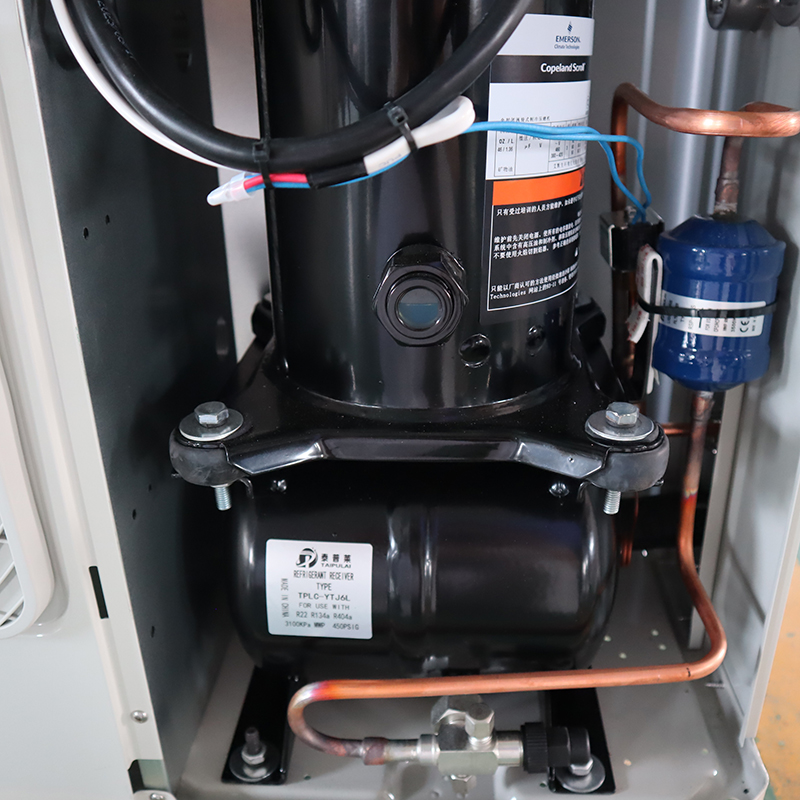

Filter & Liquid Receiver

Vibration Eliminator

Expansion Valve

Gas & Oil Separator

Suction Filter

Solenoid Valve (Standard for 6HP)

Danfoss Parts Available

Specification

HT-PG Series Copeland Condensing Unit Specification
Type	Application	Model	HP	Phase	Fan Qty	Dia(mm)	Air Vol(m³/h)	Power(W)	Light Foil	Hydrophilic
HT-PG	Mid & High Temp (ZB)	2 / 2.5 / 3	2-3HP	1PH/3PH	1	450	5800	60	●	○
	Mid & High Temp (ZB)	4 / 5 / 6	4-6HP	3PH	1/2	450	5800*Qty	60*Qty	●	○
	Low Temp (ZSI)	2 / 2.5 / 3	2-3HP	1PH/3PH	1	450	5800	60	○	●
	Low Temp (ZSI)	4 / 5 / 6	4-6HP	3PH	1/2	450	5800*Qty	60*Qty	○	●

Note: ● Standard | ○ Optional. For additional configurations, please consult us.

Frequently Asked Questions

Q1: What are the primary applications for the HT-PG series condensing unit?

The unit is designed for small cold storage facilities and is ideal for fresh or frozen food, pharmaceuticals, chemical storage, and logistics centers.

Q2: Which compressor brands are used in these units?

The standard units feature Copeland Hermetic Scroll compressors (2HP to 6HP). Other reputable compressor brands are also available upon request.

Q3: How does the unit protect against harsh environmental conditions?

The cabinet is made of steel plate with a plastic spray finish, making it corrosion-proof. The design is also waterproof and dustproof for outdoor or demanding environments.

Q4: What refrigerants are compatible with this series?

The HT-PG series supports multiple refrigerants including R404A, R134A, R507, and R22, providing flexibility for different cooling requirements.

Q5: Does the unit include diagnostic tools?

Yes, Low Temperature models come standard with Advanced CoreSense Diagnostics for real-time monitoring and fault protection.

Q6: Is the unit easy to install in confined spaces?

Yes, it features a slim-linear profile and light weight, designed specifically for maneuverability and easy mounting in various positions.
