China Suppliers Factory Condensing Unit for Cold Storage Box Type FVB and FU Series - Efficient Cooling Solution

The **condensing unit** for cold storage is a crucial component of refrigeration systems, designed for outdoor installation. This essential unit works in conjunction with the evaporating system and compressor to effectively cool the storage space and efficiently expel heat. Our **condensing units**, manufactured at our factory in China, are ideal for a variety of cold storage needs, accommodating different sizes with ease. As leading suppliers in the industry, we ensure that our products meet the highest standards of quality and performance, making them the perfect choice for your refrigeration requirements

Send Inquiry

Product Description

Products Description

Our HT-FU and HT-FVB series Condensing Unit is the optimized combination of high quality, efficiency, and easy installation. The box type condensing units combining the evaporator and compressor unit in a single compact unit, they are one of the best choices of outdoor installation types, especially for roof installation. The HT-FU and HT-FVB units are suitable for a various range of cold storages temperature and size requirements. The standard evaporating area is function from 70 to up to 500 square meters. The condensing unit contribute to maintaining the freshness and good quality of needed goods with lowering operational costs.

Product Details

Our HT-FU and HT-FVB series Condensing Unit can be applied in different temperature needs, from freshness high – mid to a frozen low temperature, often used with compressors with 8–30 horse power. With the closed box type design with door opening at the compressor sides, it is easy to maintain while maintaining protection from the outdoor environment. Also, our Condensing Unit comes with both Air Cooled and Water Cooled options.

Core Features

🔷 Steel Plate Cabinet with Plastic Spray

Customizable Color and Corrosion Proof

🔷 Mechanically Expanded Copper Tubes

Ensures high heat exchange efficiency and durability.

🔷 High Quality Aluminum Fins

Hydrophilic and Other Fins Available for various environments.

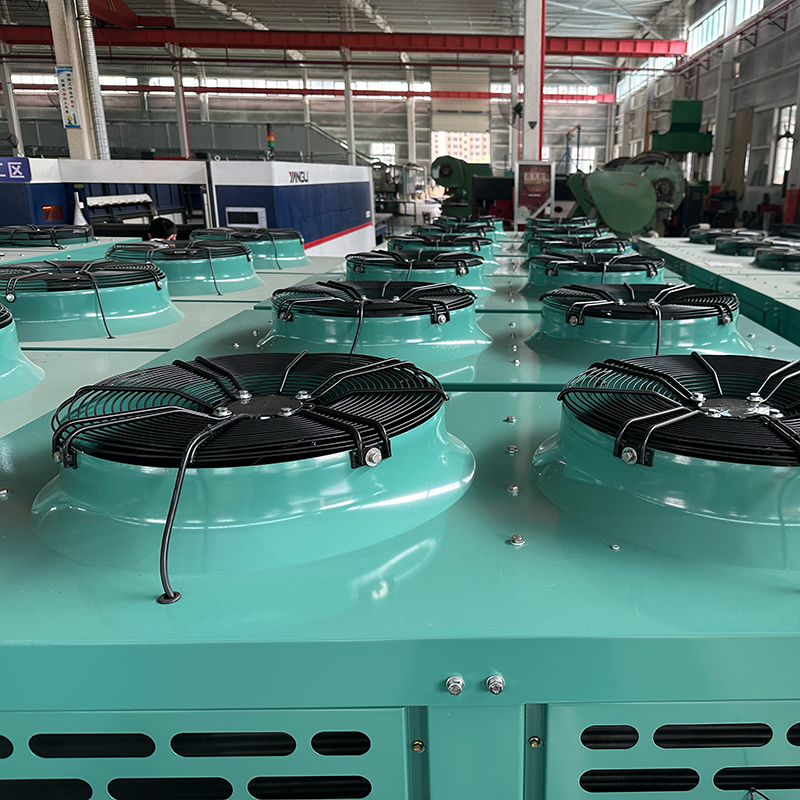

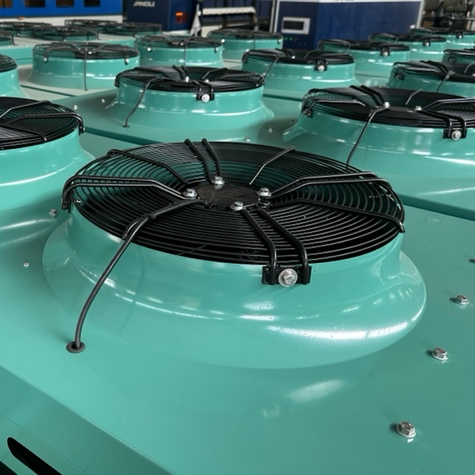

🔷 MaEr / EBM Fan Motor

Large Air Volume with Low Noise operational performance.

Multi refrigerant application: R404A, R134A, R507, R22 etc.
Protection parts for over loading, sub-heating, lack of phase, high/low pressure etc.
Compressors rack available (18HP – 176HP)

Standard Components

Compressor & Condenser
Light Foil, Hydrophilic available
Pressure Controller
Oil Heating
Filter
Liquid Receiver
Vibration Eliminator
Oil Pressure Protection
Gas Separator
Suction Filter
Oil Separator
Solenoid Valve
Danfoss Parts Available
H/L P Gauge

HT-FVB Condensing Unit

Top: V Shape condensing fins + Fans | Bottom: Compressor Unit

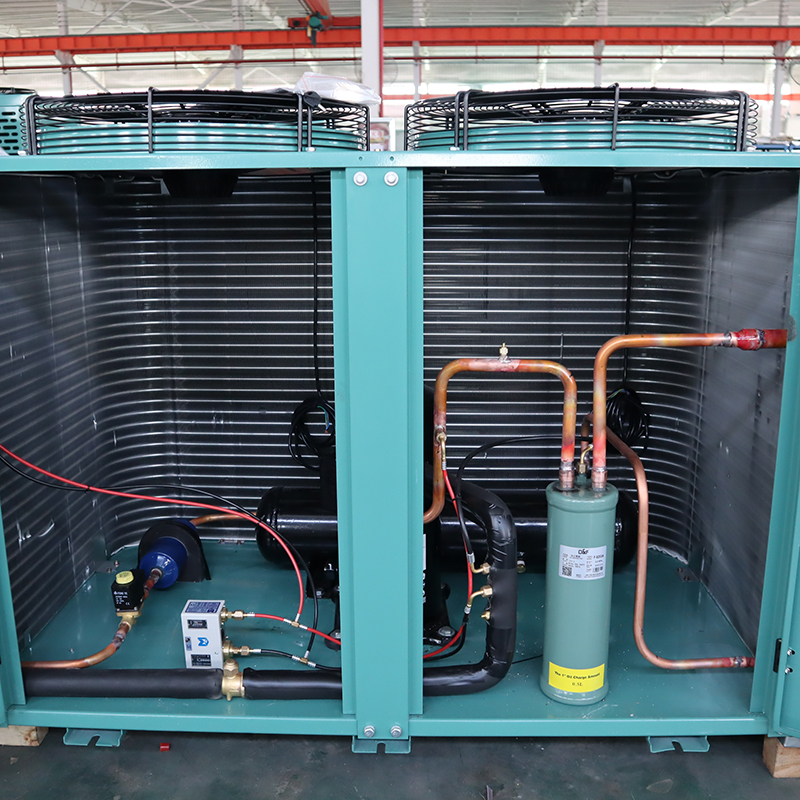

HT-FU Condensing Unit

U Shape fins along 3 sides, compressor unit at the middle.

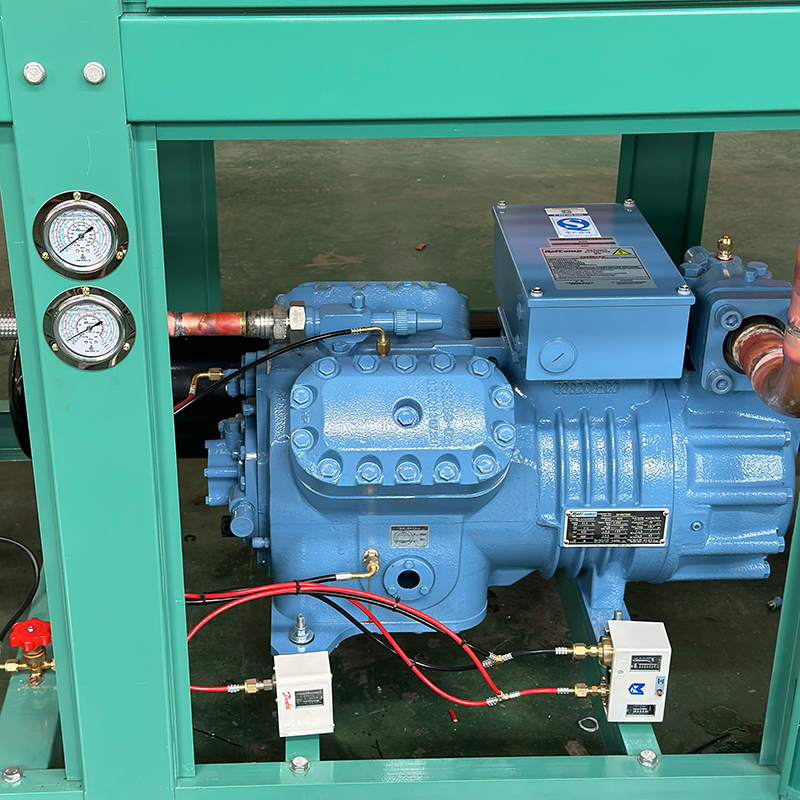

Compressor Choices

Official Authorized OEM Factory

International famous brands: Copeland, RefComp
Domestic Chinese famous brand: DMZL, XueYing (COLD)
We also have a long corporation relationship with: Bitzer, Hanbell, Danfoss etc.

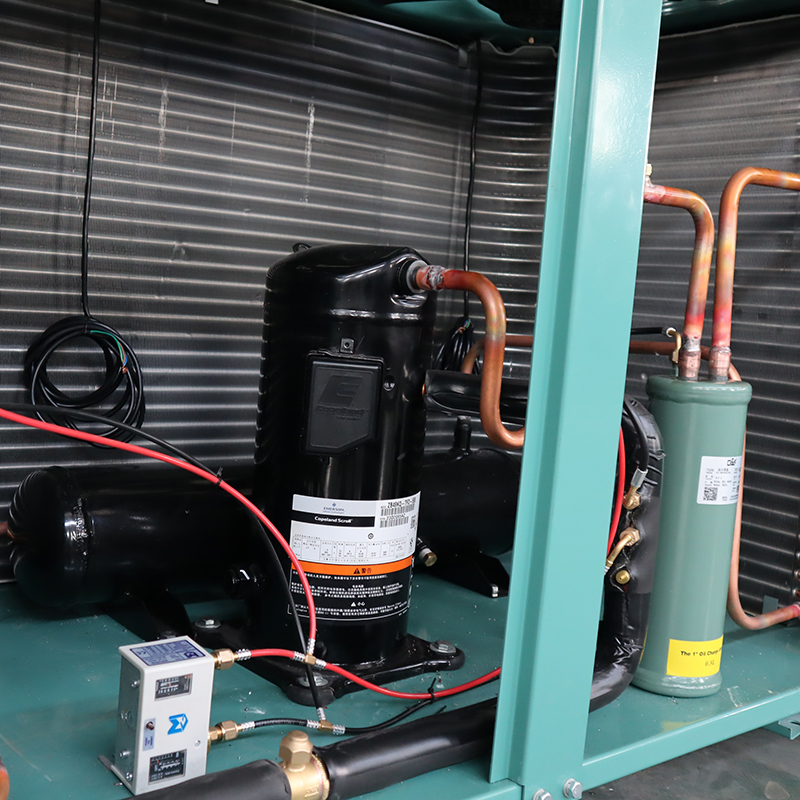

Copeland

Scroll

3HP – 30HP

RefComp (Italy)

Semi-Hermetic Piston / CO₂

5HP – 60HP

Bitzer

Semi-Hermetic Piston & Screw

3HP – 60HP

DMZL (CN)

Semi-Hermetic Piston & Screw

3HP – 60HP

XueYing / COLD (CN)

Reciprocating, Double Stage

3HP – 60HP

Danfoss

Semi-Hermetic Reciprocating

3HP – 40HP

Technical Specification

HT-FVB Series Condensing Unit Specification
Evaporating Area (m²)	Ref. Capacity (KW)	Fan Motor					Foil Type		Compressor (HP)
Evaporating Area (m²)	Ref. Capacity (KW)	Qty	Dia (mm)	Air Vol (m³/h)	Power (W)	Brand	Light	Hydro	Compressor (HP)
70	25.1	1	550	7500	550	MaEr	●	○	6~8
100	36	2	550	2*7500	2*550	MaEr	●	○	8~10
150	52.3	2	550	2*7500	2*550	MaEr	●	○	10~20
200	70.6	2	600	2*9500	2*800	MaEr	●	○	10~20
300	108.2	3	630	3*10800	3*850	MaEr	●	○	30~50
400	140.2	4	600	4*9500	4*800	MaEr	●	○	30~50

HT-FU Series Condensing Unit Specification
Evaporating Area (m²)	Ref. Capacity (KW)	Fan Motor					Foil Type		Compressor (HP)
Evaporating Area (m²)	Ref. Capacity (KW)	Qty	Dia (mm)	Air Vol (m³/h)	Power (W)	Brand	Light	Hydro	Compressor (HP)
32	9.2	1	450	7500	450	MaEr	●	○	3~5
65	19.3	1	550	2*7500	550	MaEr	●	○	5~8
80	23.1	2	550	2*7500	2*550	MaEr	●	○	8~10
140	40.1	2	600	2*9500	2*800	MaEr	●	○	10~18

Frequently Asked Questions

Q1. What is the difference between the HT-FVB and HT-FU condensing unit series?

The HT-FVB series features a V-shape condensing fin arrangement on top with the compressor unit at the bottom, while the HT-FU series uses a U-shape fin layout along 3 sides with the compressor unit positioned in the middle. Both are box-type outdoor units.

Q2. What evaporating area range do these units cover?

The HT-FVB series covers evaporating areas from 70 m² up to 400 m², while the HT-FU series covers from 32 m² up to 140 m², serving a wide range of cold storage sizes.

Q3. What refrigerants are compatible with these condensing units?

The HT-FU and HT-FVB units support multiple refrigerant types including R404A, R134A, R507, R22, and more, offering flexibility for various temperature requirements.

Q4. Which compressor brands are available?

As an Official Authorized OEM Factory, we offer Copeland, RefComp, DMZL, and XueYing (COLD), and also work with Bitzer, Hanbell, and Danfoss (3HP to 60HP).

Q5. Are these units suitable for air-cooled or water-cooled applications?

Yes, both HT-FU and HT-FVB condensing units are available in Air Cooled and Water Cooled configurations to suit different installation environments.

Q6. What protection features are included?

Units include overloading, sub-heating, lack of phase, high/low pressure, and oil pressure protection, along with standard components like pressure controllers and oil separators.
